VC9808+ Max 2000uF capacitance, Max 2000MΩ resistance, Inductance, Frequency, Temperature tests, Anti-high pressure ignition design.

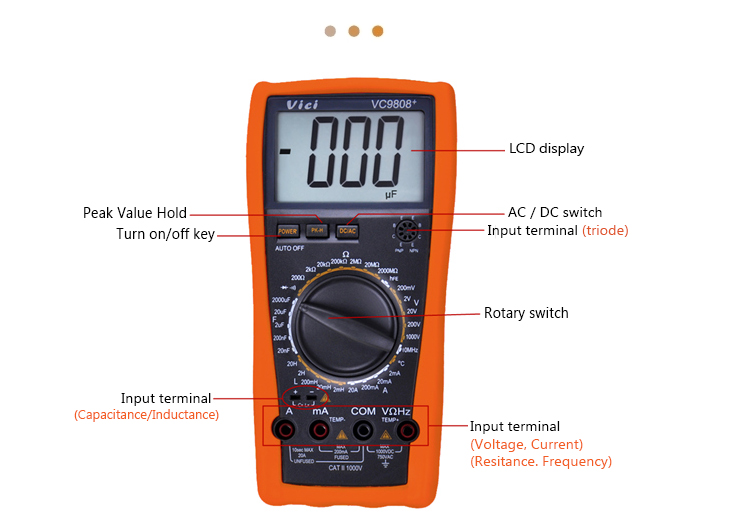

VC9808+ multimeter, available to DC voltage, AC voltage, DC current, AC current, Resistance, Capacitance, Inductance, Frequency, Temperature, hFE, Diode and Continuity tests; Designed with unit symbol, peak value hold, auto power off and protect function for error operation.
2000 digits display.
2000 digits display.
Technical Data:
|
Basic function |
Range |
Basic accuracy |
|
DCV |
200mV/2V/20V/200V/1000V |
±(0.5%+3) |
|
ACV |
200mV/2V/20V/200V/750V |
±(0.8%+5) |
|
DCA |
2mA/20mA/200mA/ |
±(0.8%+3) |
|
ACA |
2mA/20mA/200mA/ |
±(1.0%+5) |
|
Resistance |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/2000MΩ |
±(0.8%+5) |
|
Inductance |
2mH/20mH/200mH/2H/20H |
±(2.5%+20) |
|
Capacitance |
20nF/200nF/2uF/20uF/2000uF |
±(2.5%+20) |
|
Frequency |
2kHz/20kHz/200kHz/2000kHz/10MHz |
±(0.5%+4) |
|
Temperature |
|
±(0.8%+4) |
Special Function:
|
Feature |
VC9808+ |
|
Diode test |
√ |
|
hFE test |
√ |
|
Continuity alarm |
Approx. less than 30Ω |
|
Low battery indication |
Approx. less than 7.5V |
|
Data hold |
Peak value hold |
|
Auto power off |
Approx. 30minutes |
|
Function protection |
√ |
|
Anti-shock protection |
√ |
|
Input impendence |
10MΩ |
|
Sampling rate |
3times/s |
|
AC frequency response |
40-400Hz |
|
Operation way |
Manual range（frequency :auto range） |
|
Max. display |
1999 |
|
LCD size |
65× |
|
Power |
9V ( |
|
Power consumption |
Quiescent current approx. 6mA |
