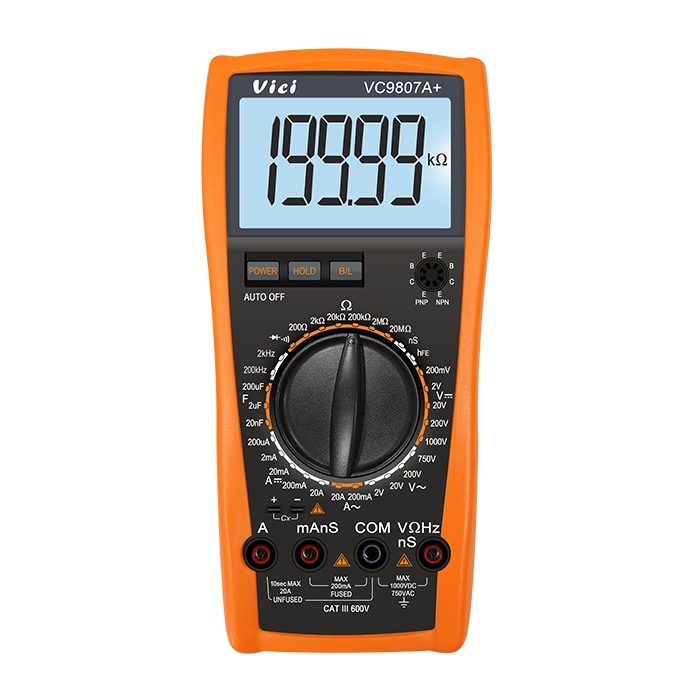

VC9807A+ Max 19999 digits high accuracy, Max 200uF capacitance, Frequency, Conductance tests, Anti-high pressure ignition design.

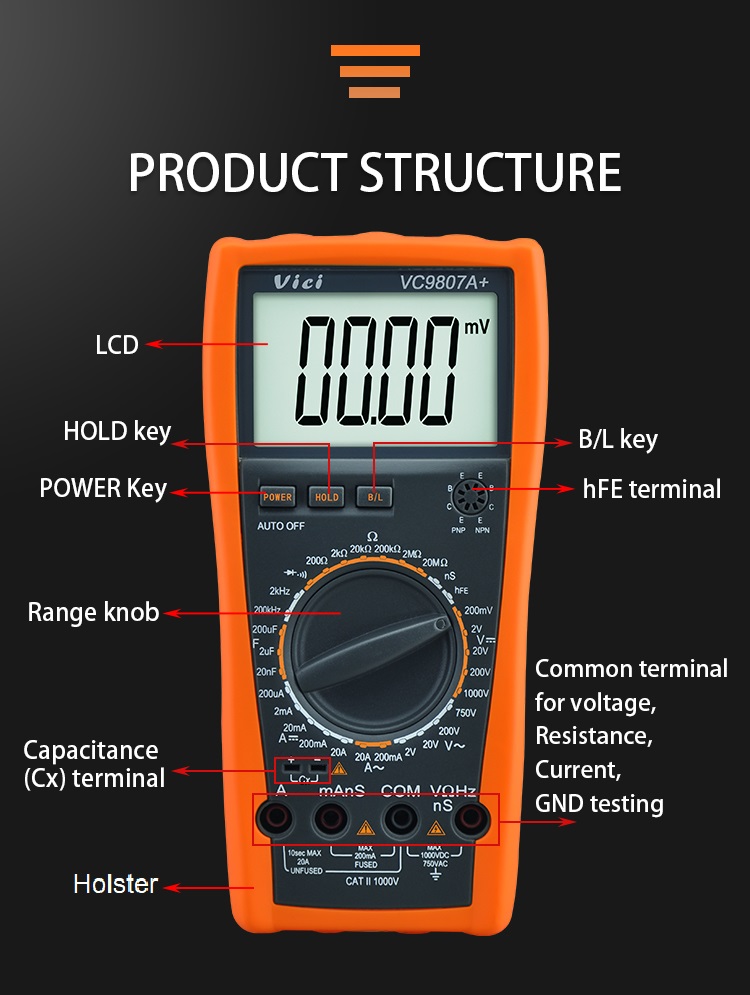

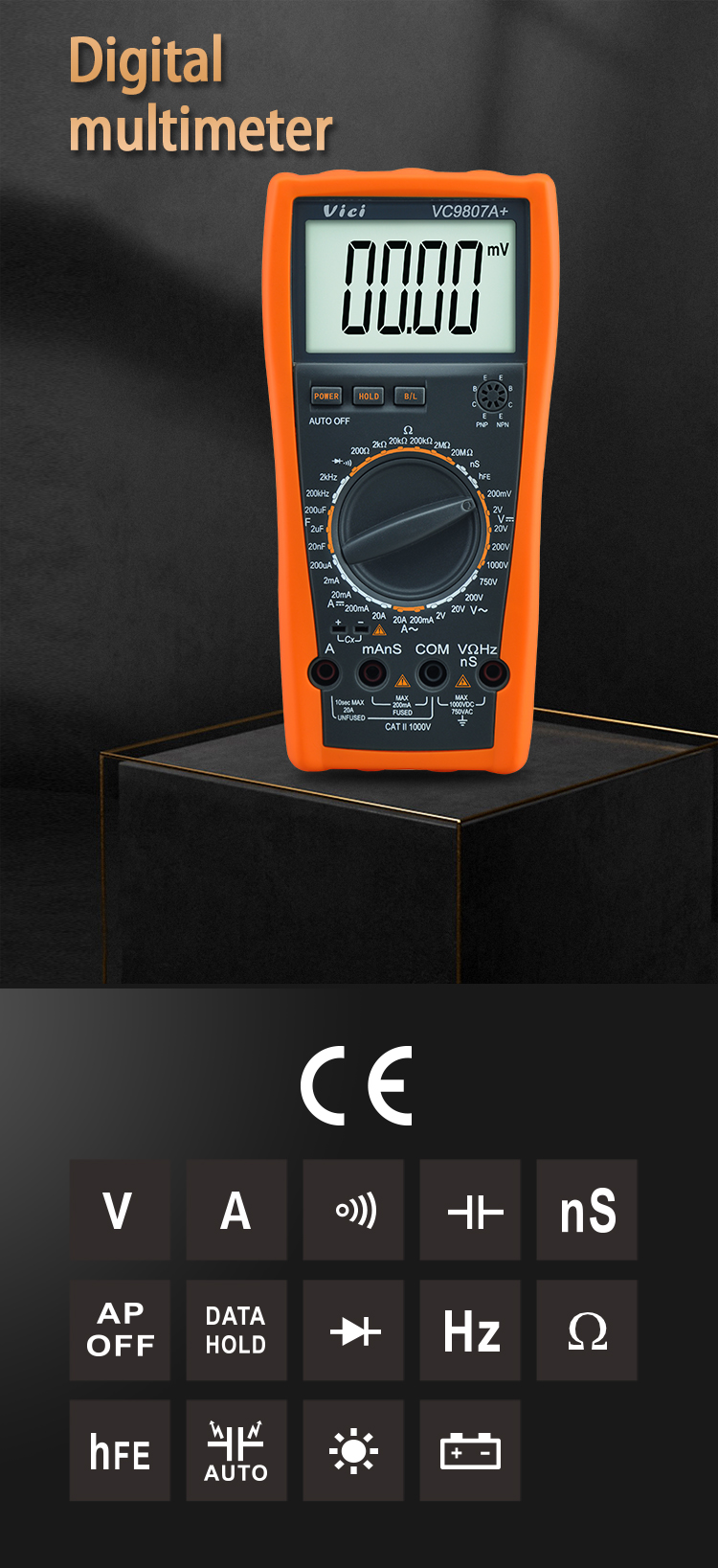

VC9807A+ multimeter, available to DC voltage, AC voltage, DC current, AC current, resistance, capacitance, conductance, frequency, hFE, diode and continuity tests; Designed with unit symbol and backlight display, data hold, auto power off and mis-operation protection functions.
19999 digits display
19999 digits display
Technical Data:
|
Basic function |
Range |
Basic accuracy |
|
DCV |
200mV/2V/20V/200V/1000V |
±(0.1%+5) |
|
ACV |
2V/20V/200V/750V |
±(0.8%+25) |
|
DCA |
200uA/2mA/20mA/200mA/ |
±(0.5%+4) |
|
ACA |
200mA/ |
±(1.5%+25) |
|
Resistance |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ |
±(0.2%+5) |
|
Conductance |
（0.1～100）nS |
±(1.0%+5) |
|
Capacitance |
2nF/20nF/2uF/200uF |
±(3.5%+10) |
|
Frequency |
2kHz/200kHz |
±(3.0%+15) |
Special Function:
|
Model |
VC |
|
Diode test |
√ |
|
hFE test |
√ |
|
Continuity alarm |
Approx. less than 30Ω |
|
Low battery indication |
Approx less than 7.5V |
|
Data hold |
√ |
|
Auto power off |
Approx. 30minutes |
|
Backlight display |
Approx. 10 seconds |
|
Function protection |
√ |
|
Anti-shock protection |
√ |
|
Input impendence |
10MΩ |
|
Sampling rate |
3times/s |
|
AC frequency response |
40-400Hz |
|
Operation way |
Manual range |
|
Max. display |
19999 |
|

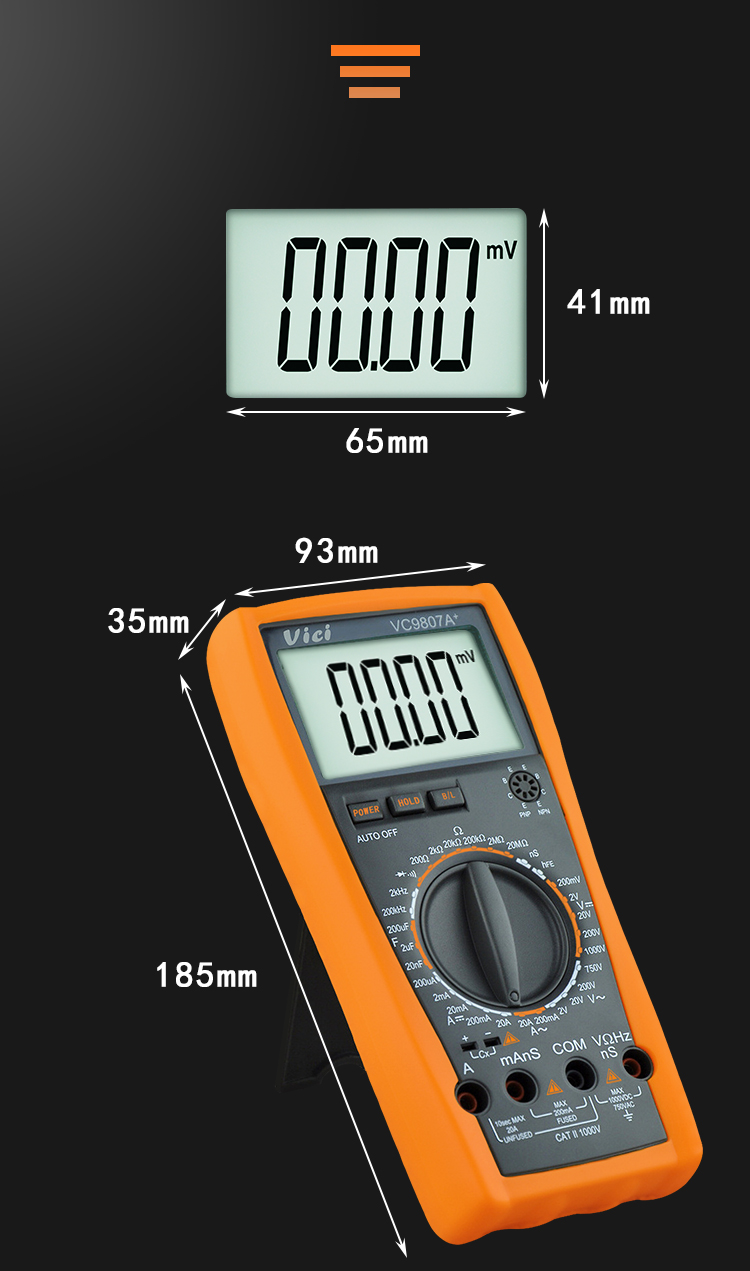

LCD size |
65× |
|
Battery |
9V ( |
|
Power consumption |
Quiescent current approx. 3mA |
