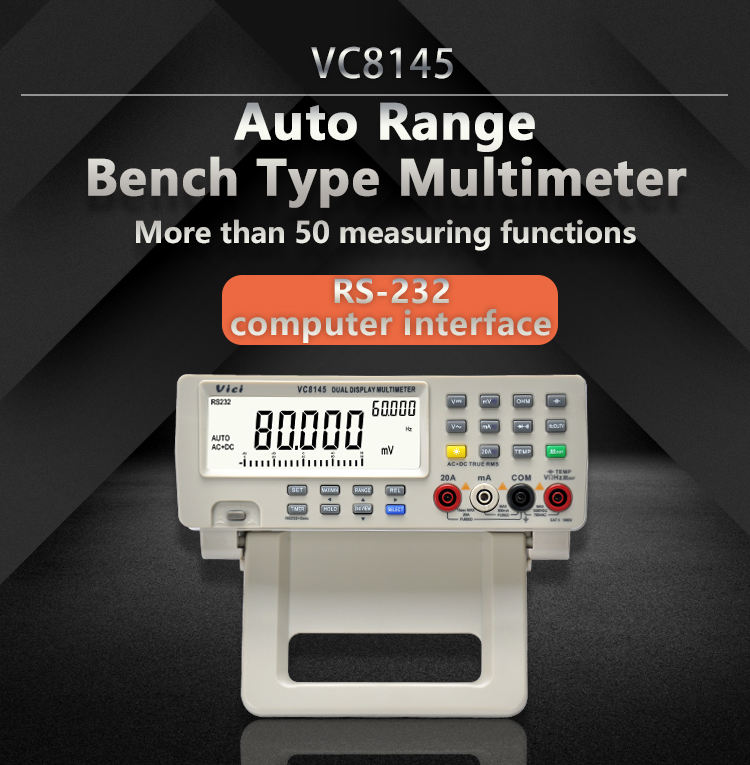

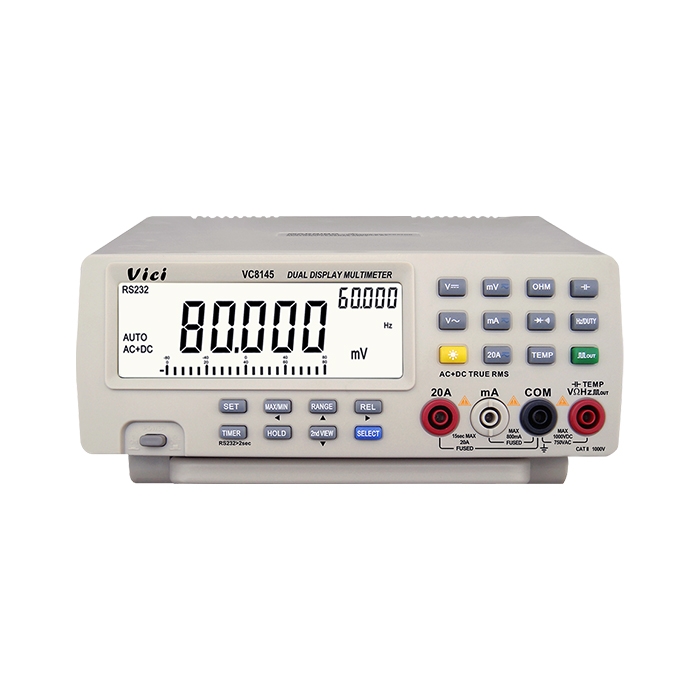

VC8145 Max 80000 digits, Broadband True RMS, Quasi-function generator, Signal analysis, Up/Low limit tests, RS-232 computer interface multimeter
l Multiple display: primary display 80000, secondary display 80000, analog 21 bars display, unit and function symbols display
l Over 50 kinds of measurements - a real multimeter
l Max 1000MHz measuring frequency
l 18 types frequency, 1％─99％ selectable Duty-cycle, 1800 waves output Quasi-function generator
l Signal analysis:simultaneous measure (AC+DC),(AC+Hz),(DC+dBm),(dBm+Hz),(Hz+Duty),(℃+℉)
l Resistance test range 0.01Ω-80MΩ
l Capacitance test range 1PF-100μF
l Temperature test range: -50℃─1372℃,-58℉─2502℉
l Decibel measurement: 20 load resistors are available
l Automatically update and hold data
l Automatically hold the positive/negative peak values
l 36-hour dynamic record: MAX, MIN, AVG, MAX-MIN
l REL△, REL% measurement
l 0.1% - 99.9% pulse spread ratio test
l Set the upper and lower limit of the area value measurement function
l Photo-electricity insulation RS-232 computer interface
l Timing measurement function
l Backlight display
Technical Data:
|
Basic function |
Range |
Accuracy |
|
DCV |
80mV/800mV/8V/80V/800V/1000V |
±(0.05%+5) |
|
ACV |
80mV/800mV/8V/80V/750V |
±(0.5%+50) |
|
DCA |
80mA/800mA/ |
±(0.2%+10) |
|
ACA |
80mA/800mA/ |
±(0.2%+10) |
|
Resistance |
800Ω/8kΩ/80kΩ/800kΩ/8MΩ/80MΩ |
±(0.3%+10) |
|
Frequency |
0.5Hz~8MHz |
±(0.05%+2) |
|
Capacitance |
1nF /10nF/100nF/1uF/10uF/100uF |
±(2.5%+50) |
|
Temperature |
|
±(1.5%+10) |
|
Square Wave |
3V / 0.5Hz~5kHz / 1%~99% |
±0.05% |
Special Function:
|
Model |
VC8145 |
|
Diode |
√ |
|
AC+DC measuring |
√ |
|
Continuity test |
√ |
|
Overloading protection |
√ |
|
Input Impedance |
10MΩ |
|
Sampling frequency |
4times/sec. Analog bar 40 times/sec. |
|
AC frequency response |
40Hz-50kHz |
|
Operation way |
Auto range |
|
Max display |
80000 |
|
Computer interface |
Photo-electricity insulation RS-232 |
|
Power |
AC220V/110V 50Hz/60Hz |
