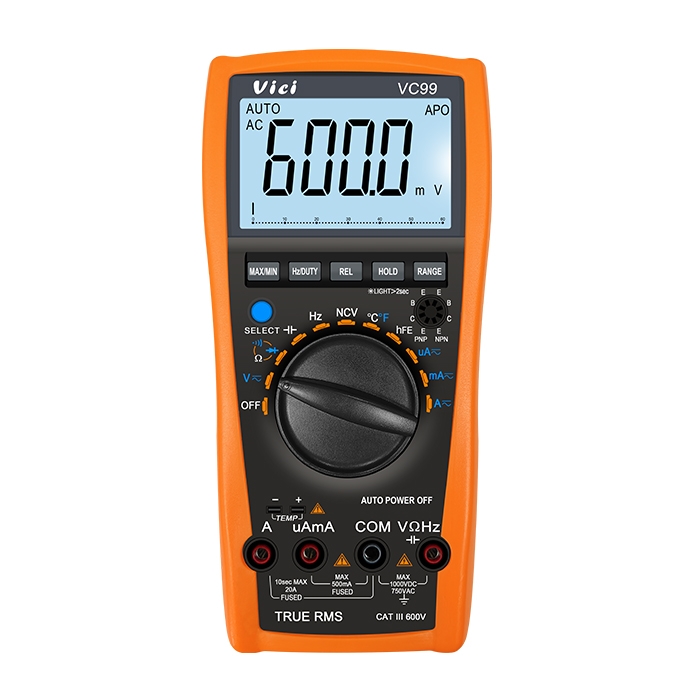

VC99 True RMS, Analog bar display, NCV test, Max/Min , Data hold, Backlight.
VC99 multimeter, available to DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, non-contact voltage detection, duty cycle, temperature, diode and continuity tests; Designed with unit symbol display and analog bar display, max and min value measurement, data hold, auto ranging switch, auto power off and alarm functions.
6000 digits display
6000 digits display
Technical Data:
|
Basic function |
Range |
Basic accuracy |
|
DCV |
600mV/6V/60V/600V/1000V |
±(0.5%+3) |
|
ACV |
6V/60/600/750V |
±(0.8%+5) |
|
DCA |
600uA/6000uA/60mA/600mA/ |
±(1.0%+3) |
|
ACA |
600uA/6000uA/60mA/600mA/ |
±(1.2%+5) |
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
±(0.8%+5) |
|
Capacitance |
60nF/ 600nF/6uF/60uF/600uF/6mF/60mF |
±(3.5%+10) |
|
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
±(0.5%+4) |
|
Centigrade temperature |
-40℃～1000℃ |
±(0.8%+4) |
|
-40℉～ |
±(0.8%+5) |
Special Function:
|
Model |
VC99 |
|
NCV |
√ |
|
Backlight display |
|
|
TRUE RMS |
√ |
|
Diode test |
√ |
|
hFE test |
√ |
|
Continuity test |
Approx. less than 30Ω |
|
Low battery indication |
Approx less than 2.4V |
|
Duty cycle measuring |
√ |
|
Data hold |
MAX./MIN., HOLD |
|
Auto power off |
Approx.15minutes |
|
Analog bar |
√ |
|
Function protect |
√ |
|
Input impendence |
10MΩ |
|
Sampling rate |
3times/s |
|
AC frequency response |
40-2kHz |
|
Operation way |
Manual or auto range |
|
Max. display |
6000 |
|
LCD size |
65x |
|
Battery |
3V (1.5V AAA×2) |
|
Power consumption |
Quiescent current approx. 2mA |
