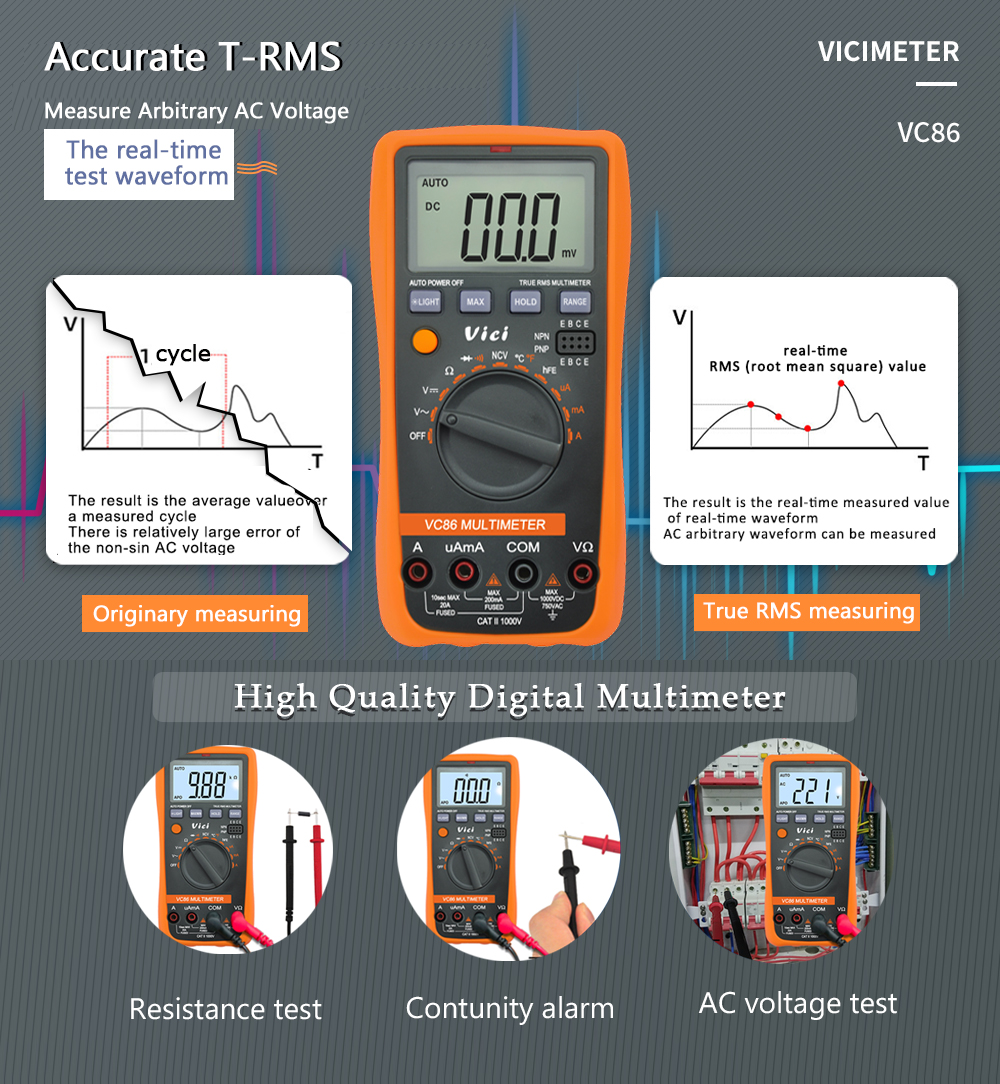

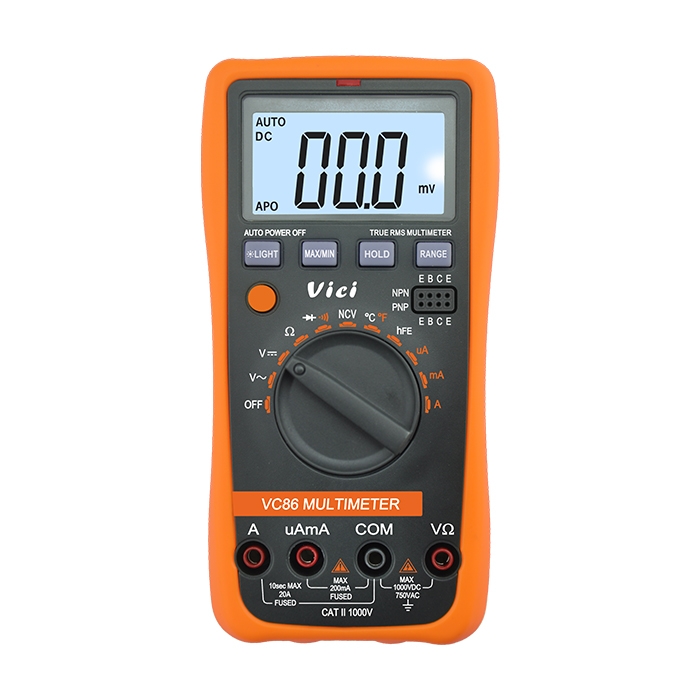

VC86 True RMS, NCV tests, Max/Min tests, Data hold, Backlight.
VC86 multimeter, available to DC voltage, AC voltage, DC current, AC current, resistance, non-contact voltage (NCV) detecting, temperature, hFE, Diode and continuity tests; Designed with unit symbol, backlight display, data hold, max value, min value tests, auto ranging switch, auto power off and alarm functions.
2000 digits display
2000 digits display
|
Basic function |
Range |
Accuracy |
|
DCV |
200mV/2V/20V/200V/1000V |
±(0.5%+4) |
|
ACV |
2V/20V/200V/750V |
±(0.8%+5) |
|
DCA |
200uA/2000uA/20mA/200mA /2A/20A |
±(1.0%+5) |
|
ACA |
200uA/2000uA/20mA/200mA /2A/20A |
±(1.5%+5) |
|
Resistance |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ |
±(0.8%+1) |
|
Temperature |
(-40~ 1000)℃ |
±(0.8%+4) |
|
(-40~ 1832)℉ |
±(1.2%+4) |
Special Function:
|
Model |
VC86 |
|
True RMS |
√ |
|
NCV |
√ |
|
Diode and hFE test |
√ |
|
Continuity alarm |
Less than 50Ω |
|
Low battery indicator |
Approx. less than 2.4 V |
|
Backlight display, Data hold |
√ |
|
Auto power off |
About 15 minutes |
|
Function protection |
√ |
|
Input impedance |
10MΩ |
|
Sampling rate |
3 times/s |
|
AC frequency response |
40-2kHz |
|
Operation method |
Auto or manual range |
|
Max display |
1999 |
|
LCD size |
54x30mm |
|
Battery |
3V (1.5V AAA×2) |
|
Power consumption |
Quiescent current about 2mA |
