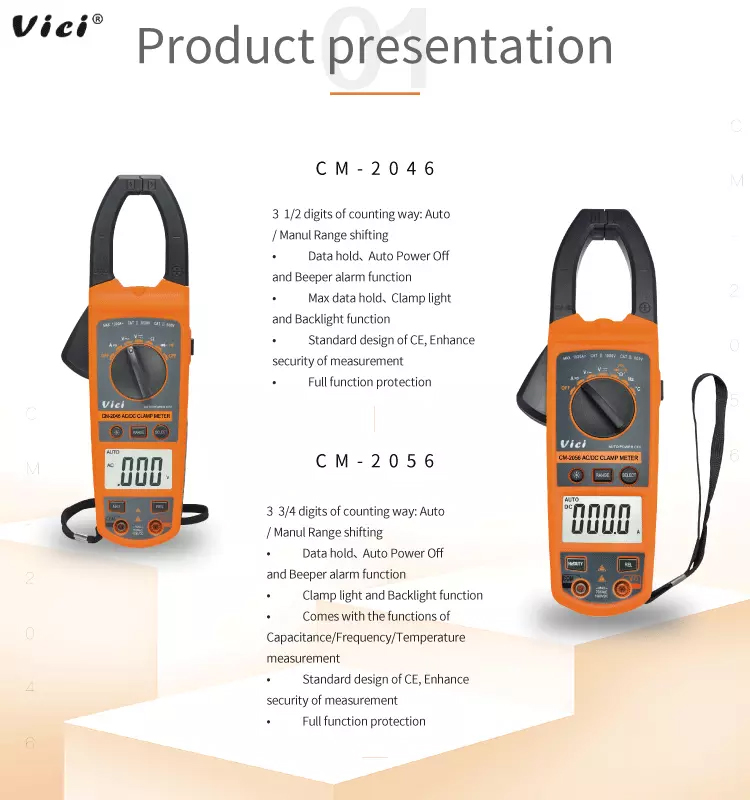

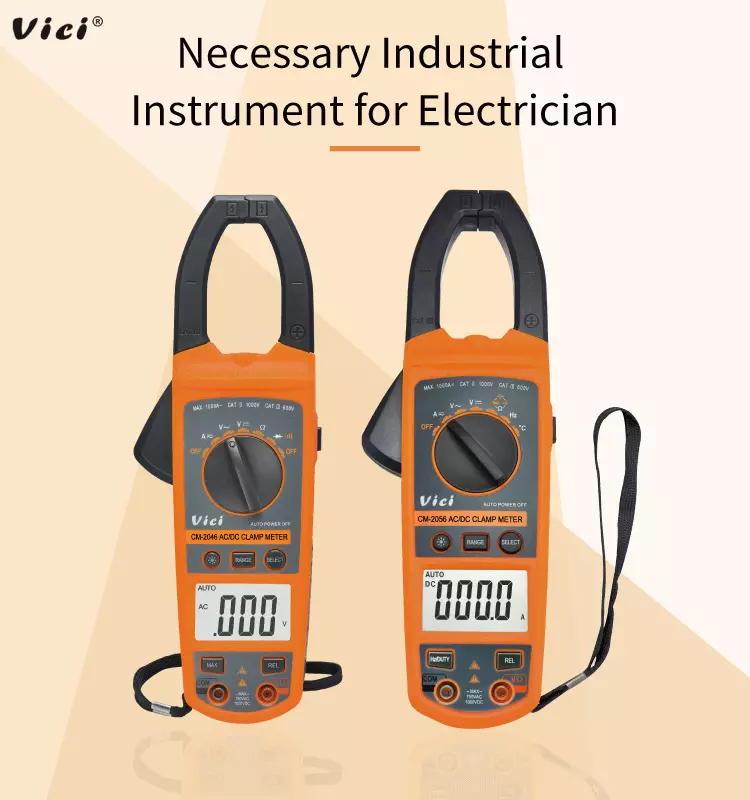

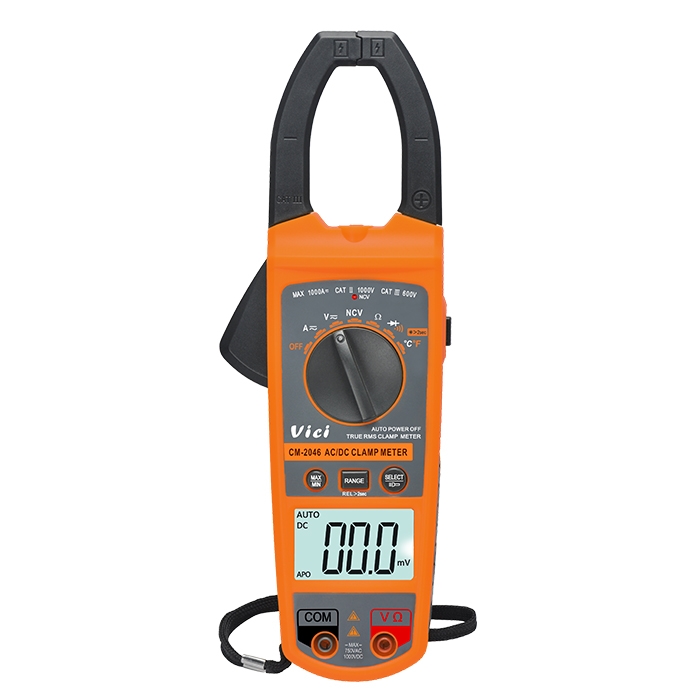

CM-2046 Clamp open 52mm, 1000A AC DC, True RMS, NCV, Temperature tests, Backlight, Clamp lighting function.

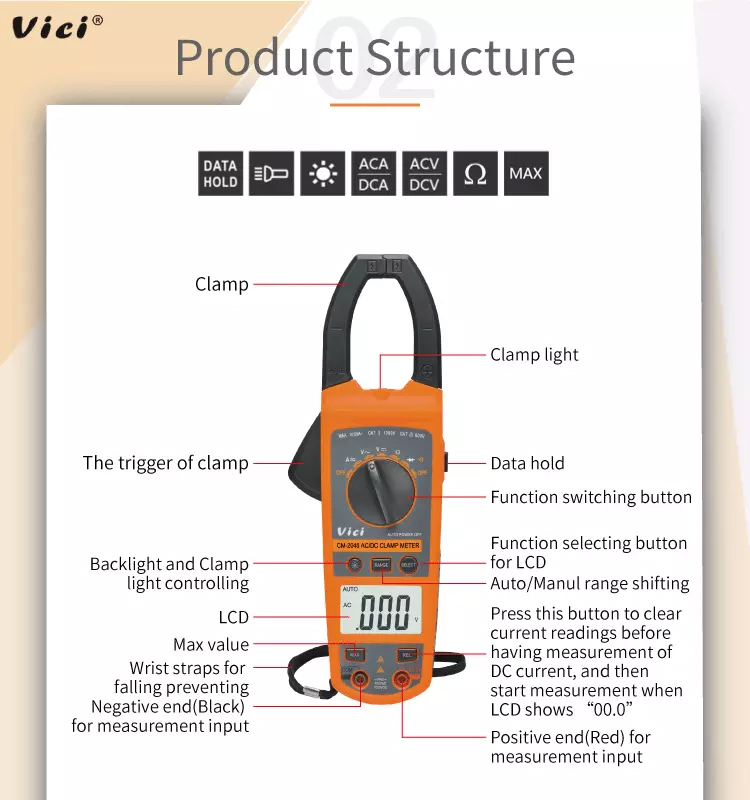

CM-2046 clamp meter, DC voltage, AC voltage, DC current, AC current, resistance, non-contact voltage (NCV), temperature, true RMS, diode and continuity tests; Designed with unit symbol and backlight display, data hold, clamp lighting, auto ranging switch, auto power off and alarm functions.
2000 digits display
2000 digits display
Technical Data:
|
Basic function |
Range |
Accuracy |
|
DCV |
200mV/2V/20V/200V/1000V |
+/- (0.5%+5) |
|
ACV |
200mV/2V/20V/200V/750V |
+/- (1.0%+5) |
|
DCA |
200A/1000A |
+/- (2.0%+5) |
|
ACA |
200A/1000A |
+/- (2.0%+5) |
|
Resistance |
200/2k/20k/200k/2M/20M ohm |
+/- (0.8%+1) |
| Temperature | (-40~1000)℃ / （-40~1832）℉ | +/- (1.0%+5） |
Special Function:
|
Model |
CM-2046 |
|
NCV test |
YES |
|
True RMS test |
YES |
|
Diode test |
YES |
|
Continuity test |
Less than 50ohm |
|
Low battery indicator |
Approx. less than 2.4 V |
|
Data hold |
Data hold/ Max value hold |
|
Auto power off |
About 15 minutes |
|
Function protection |
YES |
|
Clamp light display |
YES |
|
Backlight display |
YES |
|
Input impedance |
10M ohm |
|
Sampling rate |
3 times/s |
|
AC frequency response |
Current 50-60Hz/ voltage 50-400Hz |
|
Operation method |
Auto or manual range |
|
Max display |
1999 |
|
Clamp opens |
52mm |
|
Battery |
3V (2*AAA battery) |
