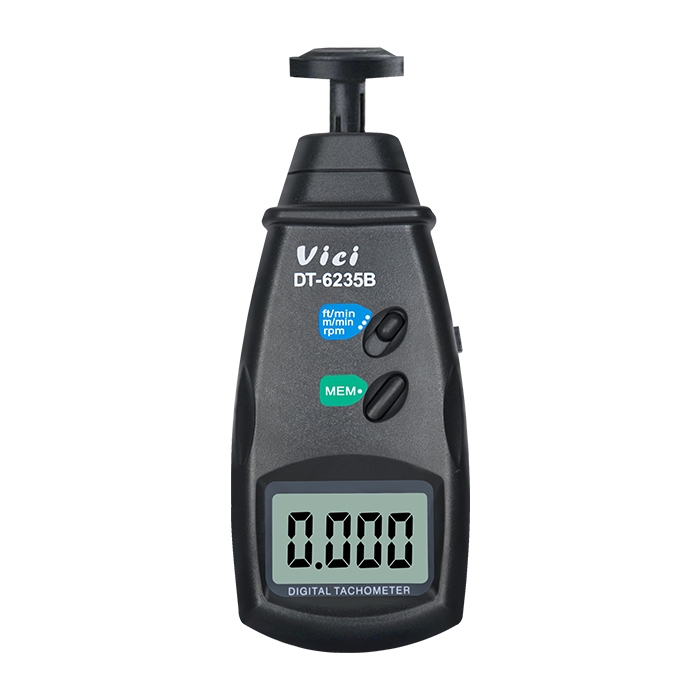

DT-6235B Contact RPM Surface Speed testing Digital Tachometer, Automatically memory max/min/last value, Automatically store data.
DT-6235B contact rpm digital tachometer is used for speed testing of rotors such as various engines, motors, speed control devices and wire speed tests of various conveyor belts. It is used in the speed debugging of various devices such as aircraft, ships, EMUs, automobiles, model aircraft, toys, etc., and the surface speed debugging of assembly lines and transmission dials.
Technical Data:
|
Basic function |
Range |
Basic Accuracy |
|
Contact rotation speed |
0.5～19,999RPM (r/min) |
± (0.05%+1 digit) |
|
Contact line speed (metric) |
0.05～ |
± (0.05%+1 digit) |
|
Contact line speed (Imperial) |
0.2～ |
± (0.05%+1 digit) |
Special Function:
|
Model |
DT-6235B |
|
Measuring way |
Contacted |
|
Resolution |
Rotation speed: 0.1RPM (r/min) (0.5～999.9RPM) 1RPM (r/min) (over 1000RPM) Surface speed: |
|
Sampling time |
0. 8 (over 60RPM) |
|
Range selection |
Auto switch |
|
Power Consumption |
Max. 45mA |
|
Memory |
Auto memory Max./Min. last value and auto store 96teams data |
|
Time Base |
6MHz Quartz crystal |
|
Accuracy of time base |
10×10-6 ( |
|
Battery |
4X1.5V AA Size Battery or to external DC 6V |
|
Max. display |
99999 |
|
LCD size |
5digits, 18mm high |
