VC4060B Insulation Induction DMM Motor Checker, True RMS test, NCV test, Data hold, Backlight, Torch lighting, Max/Min and the difference value between max and min.

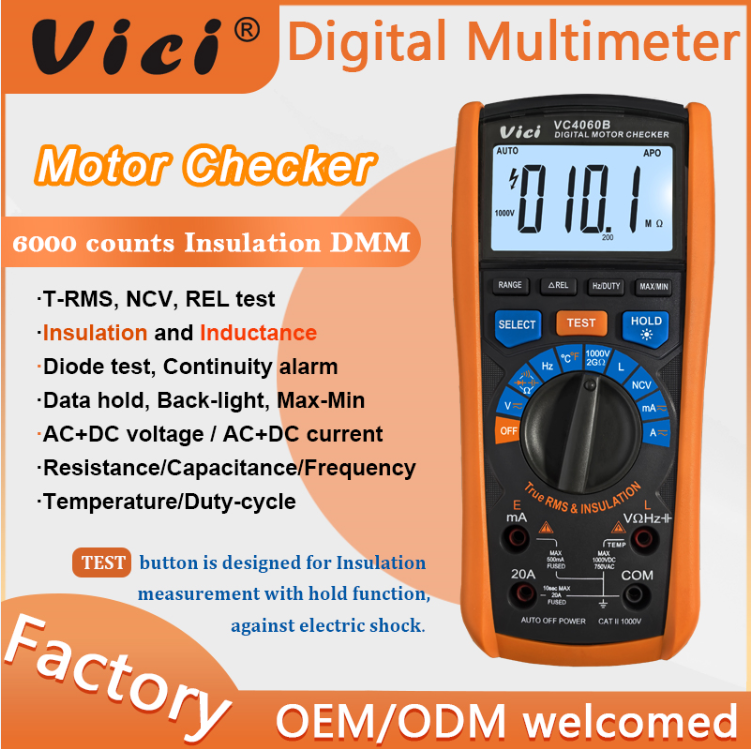

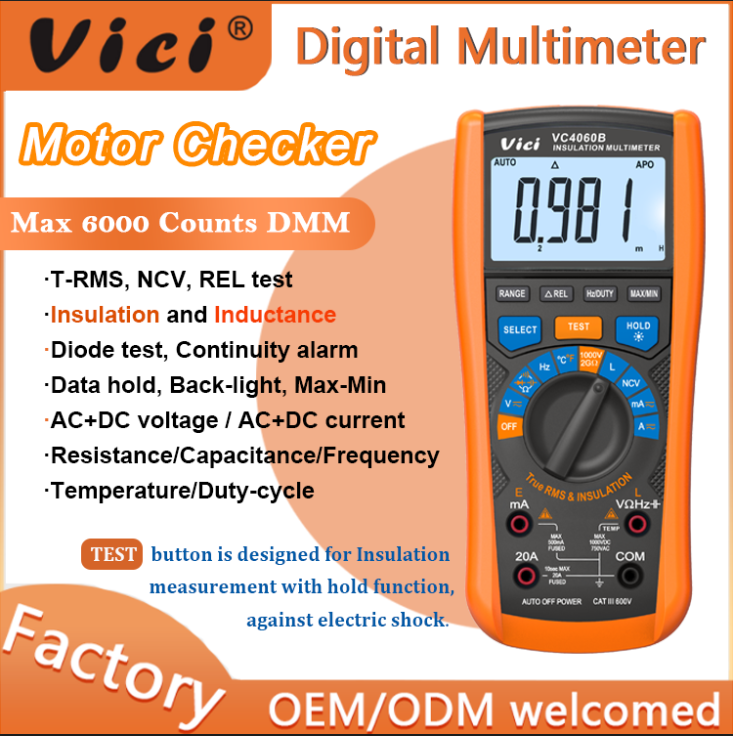

VC4060B motor checker insulation multimeter, available to Inductance, DC voltage, AC voltage, DC current, AC current, Resistance, Insulation Resistance, Capacitance, Frequency, Non-contact voltage detecting, Duty-cycle, Temperature, Diode and Continuity tests; Designed with unit symbol, backlight display, torch lighting, data hold, auto ranging switch, auto power off and alarm functions.
6000 digits display

Add to cart Buy now

分享到

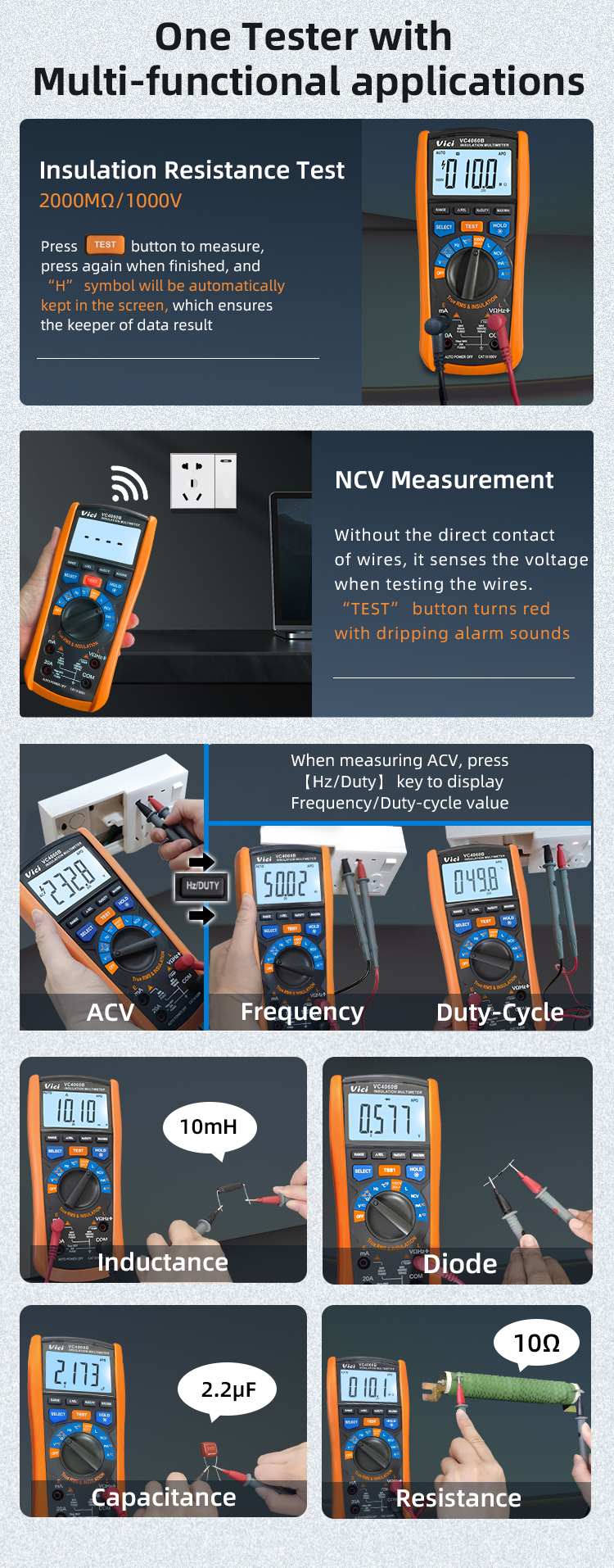

1. Insulation Resistance Test, Inductance, True RMS, non-contact voltage detection,frequency/duty cycle and data hold function;

2. New type holster, streamlined design, comfortable handle;

3. Large LCD display makes reading clear;

4. Strong antimagnetic and anti-interferential performance, full function protection;

5. Auto power off when there is no measurement in 15 minutes;

6. Unit symbol display, easy to read; backlight display.

Technical specifications:

Basic function	Range	Accuracy
DCV	600mV/6V/60V/600V/1000V	±(0.5%+5)
ACV	6V/60V/600V/750V	±(0.8%+10)
DCA	6mA/60mA/600mA/6A/20A	±(1.0%+5)
ACA	6mA/60mA/600mA/6A/20A	±(1.5%+5)
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	±(0.8%+2)
Inductance	6mH/60mH/600mH/6H/60H/100H	±(1.5%+5)
Capacitance	6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF	±(2.5%+5)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz	±(0.5%+4)
Insulation	2000MΩ for 1000V	±(4.0%+2)
Centigrade Temperature	-40℃～1000℃ /-40℉～1832℉	±(1.0%+5)

Special function	VC4060B

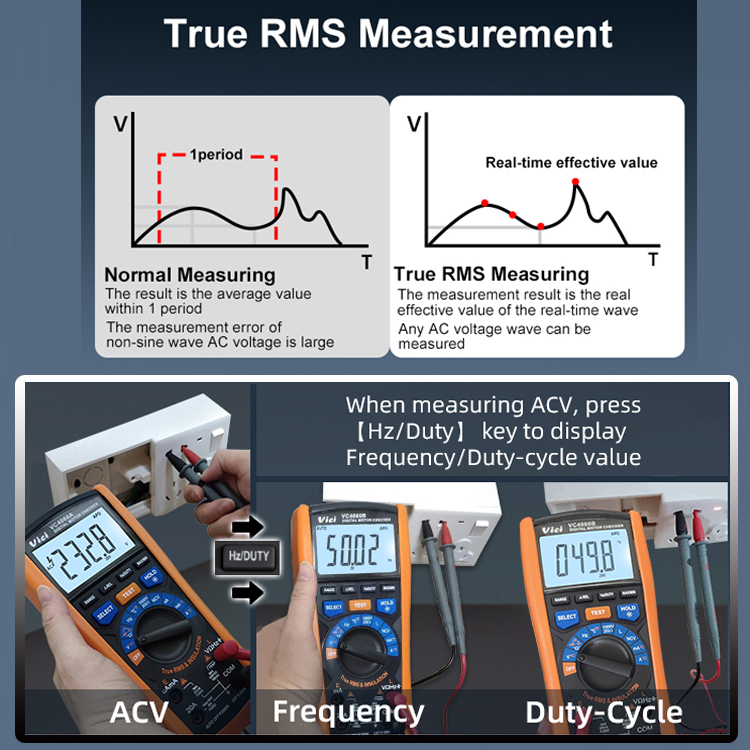

True RMS	√
NCV	√
Function Protect	√
Diode test	√
Continuity test	Warning sound when less than 50Ω
Duty cycle measuring	√
Data hold	√
Backlight display	√
Max-Min	MAX., MIN. value and difference value between MAX and MIN
Auto power off	Approx.15minutes
Low battery indication	Approx. less than 7.6V
Input impendence	10MΩ
Sampling rate	3times/s
AC frequency response	40Hz-2kHz
Operation way	Manual or auto range
Max. display	6000
LCD size	65×40mm
Power	6x1.5V AA battery
Power dissipation	Quiescent current approx. 6mA

General Info:

Color	Orange holster and Grey device
Weight	480g (including battery)
Meter size	200mm×92mm×50mm

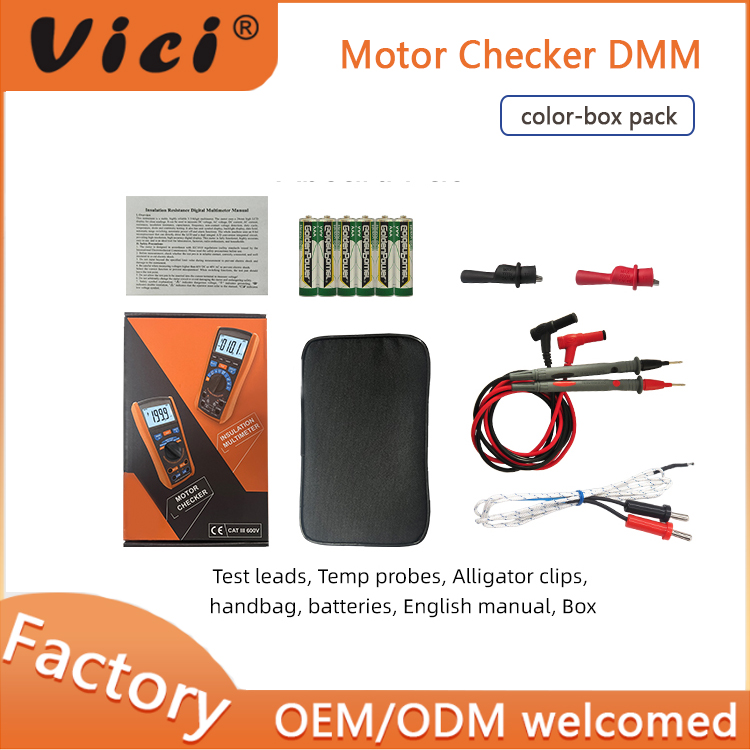

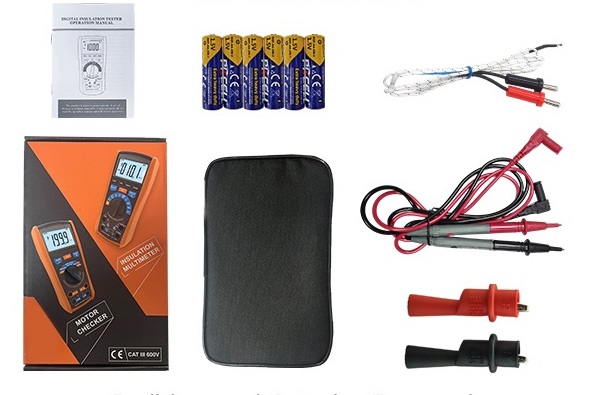

Standard accessory	Test leads, battery, manual, TP01 temperature probes, handbag
Packing	Gift box
Quantity per carton	20pcs
