AC-1 voltage detector & screwdriver 2-in-1 eletricity test tool
Neon light voltage detector
Live wire detecting
Bright lamp beads
Obvious in hindsight
Portable easy-to-use voltage tester

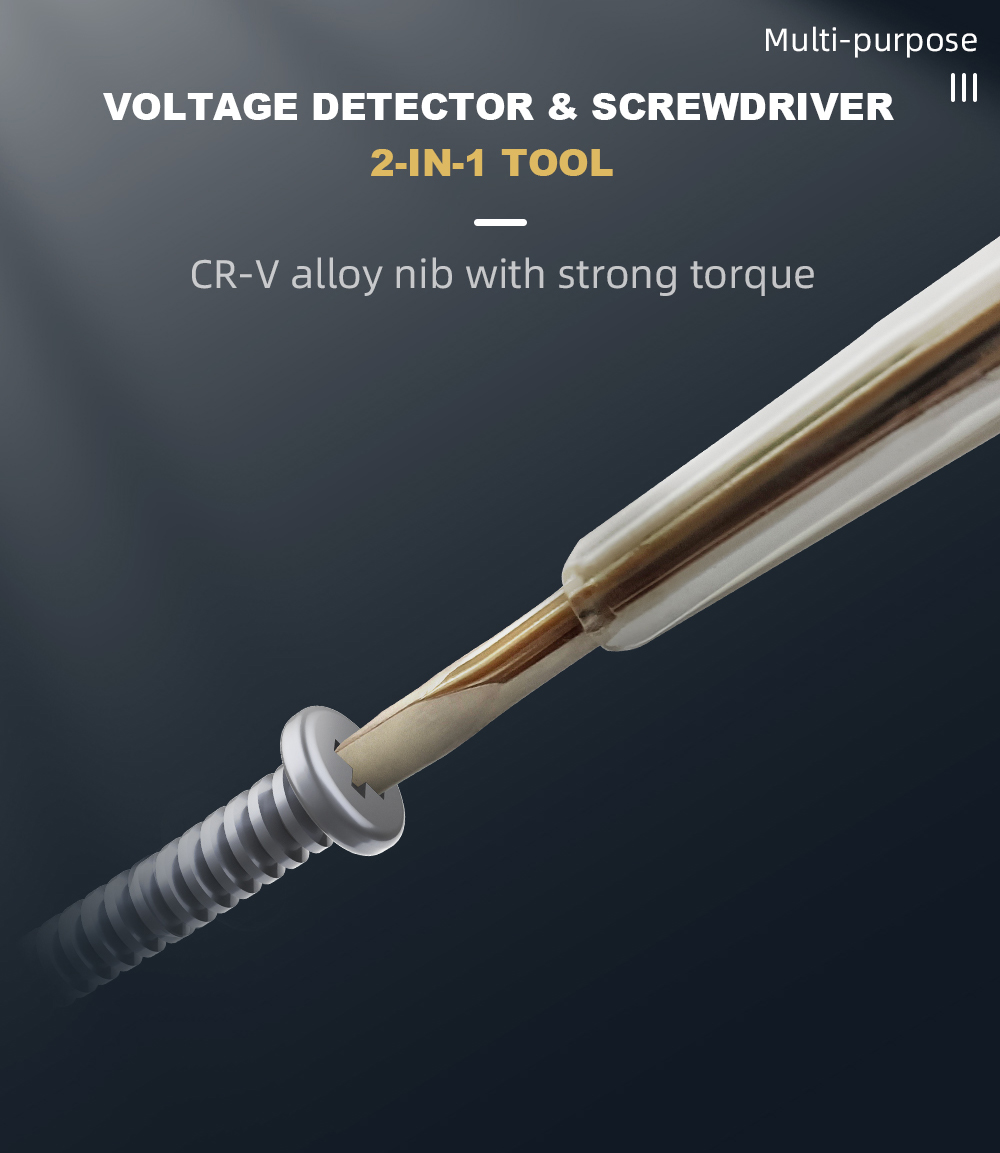

volt detector & screwdriver 2-in-1 tool
Product Parameters
1. AC voltage (contact)
2. Test range 70-250V (non-contact)
3. Test range 70-600V
4. Continuity test 0-20MΩ
5.Voltage test 50-500HZ
Please be sure to use it within the prescribed limits. The operating temperature shall not be higher than 50°C. Do not store in a humid environment.
The detector should be kept away from the flame to avoid bursting. Do not touch the metal parts of the testing points to avoid causing you any harm.
Voltage range: DC 12-24V, AC24-250V
Light emitting element: red and green LED lamp, red 1.2 V Green 1.8 V
Specification: 3.5 x140mm
Mode of use

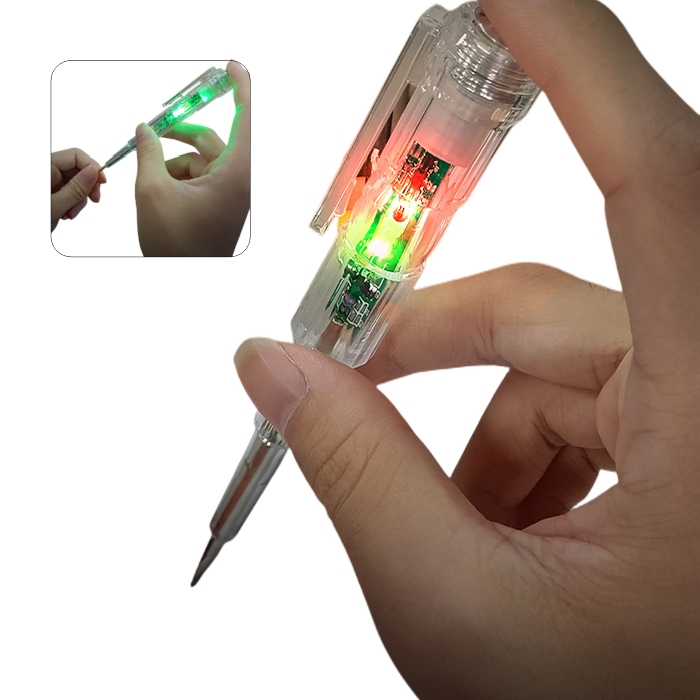

1. Self-test: a self-test is required before use, one hand holds the probe head, the other hand touches the touch end, and the green light lights up to indicate that the battery is sufficient to use. A lack of light indicates that the battery needs to be replaced. (LR41 battery)
2. Live wire detection: the probe head contacts the charged conductor under test; and red and green lights lit up at the same time show live wire.
3. Neutral wire detection: the probe head contacts the charged conductor under test, and the green light shows neutral wire.
Security Alert!
1. Pay attention to moisture-proof this product, and the ambient humidity does not exceed 50 degrees.
2. Self-test is required before use, and the equipment can only be used if it is normal.
3. During fire line detection, the human body is prohibited from touching the probe head.
