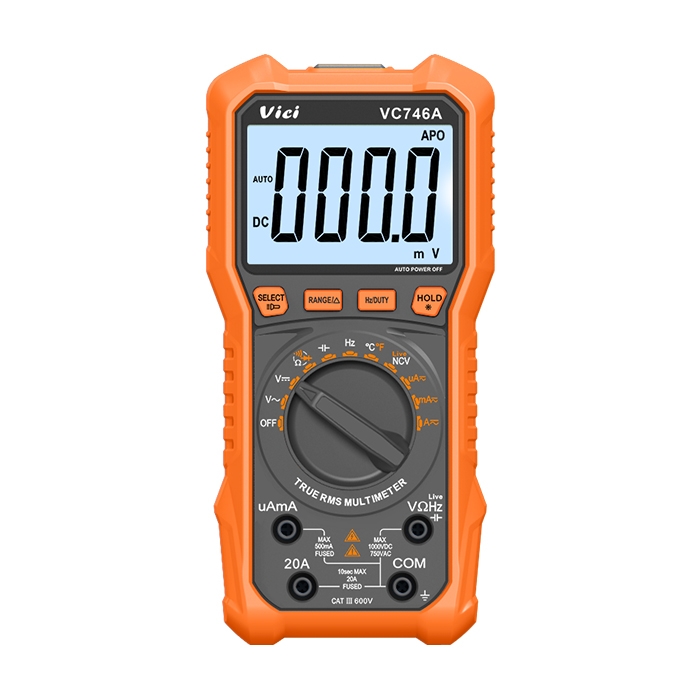

VC746A Live，NCV，T-RMS tests 6000 digits auto ranging multimeter with Data hold, Duty-cycle, Diode, hFE tests and Data hold, Backlight Torch functions
VC746A digital multimeter, available to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, contact and non-contact voltage detection, duty cycle, temperature, diodes, and continuity testing. It also features true root mean square (RMS), NCV+Live voltage detection, high-voltage symbol indication, frequency/duty cycle measurement, backlight/flashlight lighting, data hold, low-voltage display, and auto power-off functions.
Technical Data:
|
Basic function |
Range |
Basic Accuracy |
|
DCV |
600mV/ 6V/ 60V/ 600V/1000V |
±(0.5%+5) |
|
ACV |
6V/ 60V/ 600V/ 750V |
±(0.8%+10) |
|
DCA |
600uA/ 6000uA/ 60mA/ 600mA/ 6A/ 20A |
±(1.0%+5) |
|
ACA |
600uA/ 6000uA/ 60mA/ 600mA/ 6A/ 20A |
±(1.5%+10) |
|
Resistance |
600Ω/ 6kΩ/ 60kΩ/ 600kΩ/ 6MΩ/ 60MΩ |
±(0.8%+2) |
|
Capacitance |
60nF/ 600nF/ 6uF/ 60uF/ 600uF/ 6mF/ 60mF |
±(2.5%+5) |
|
Frequency |
10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz/ 10MHz |
±(0.5%+4) |
|
Temperature |
-40℃～1000℃ | -40℉～1832℉ |
±(1.0%+5) |
Specific Function:
|
Model |
VC746A |
|
Max. display |
6000 |
|
√ |
|
|

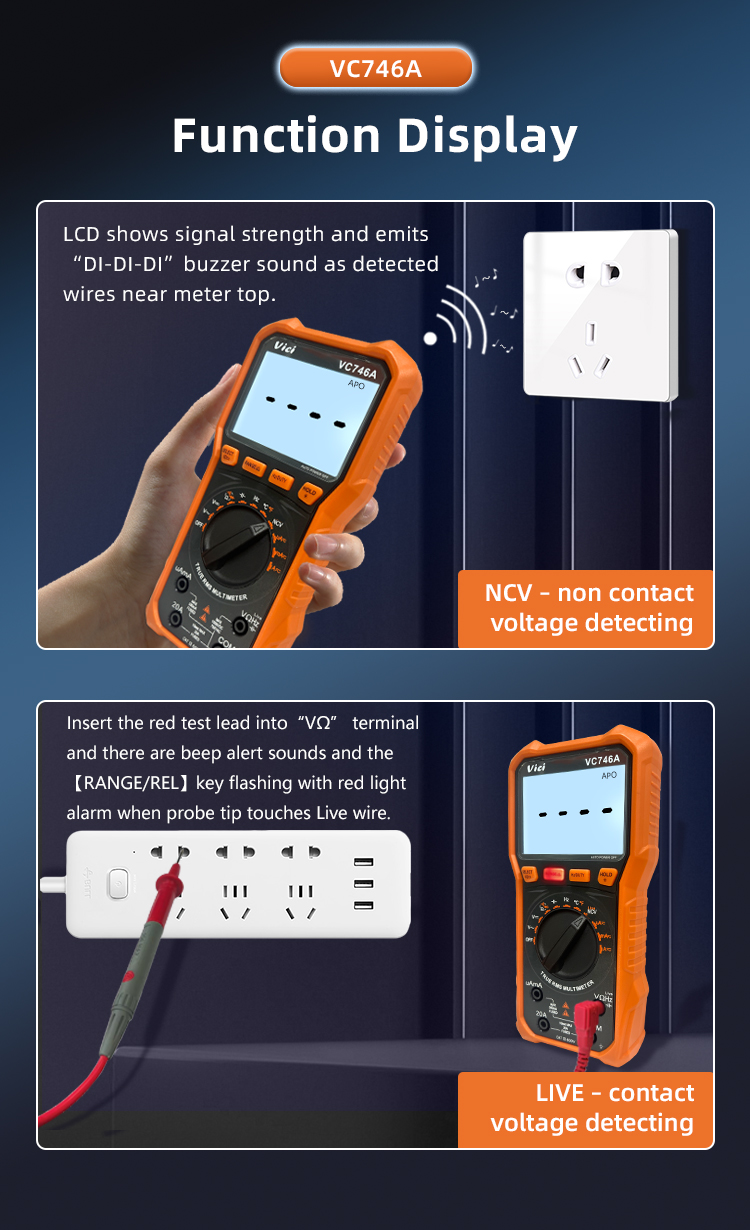

NCV |
√ |
|
Live test |
√ |
|
High voltage indication |
√ |
|
Data hold |
√ |
|
Function protection |
√ |
|
Torch function |
√ |
|

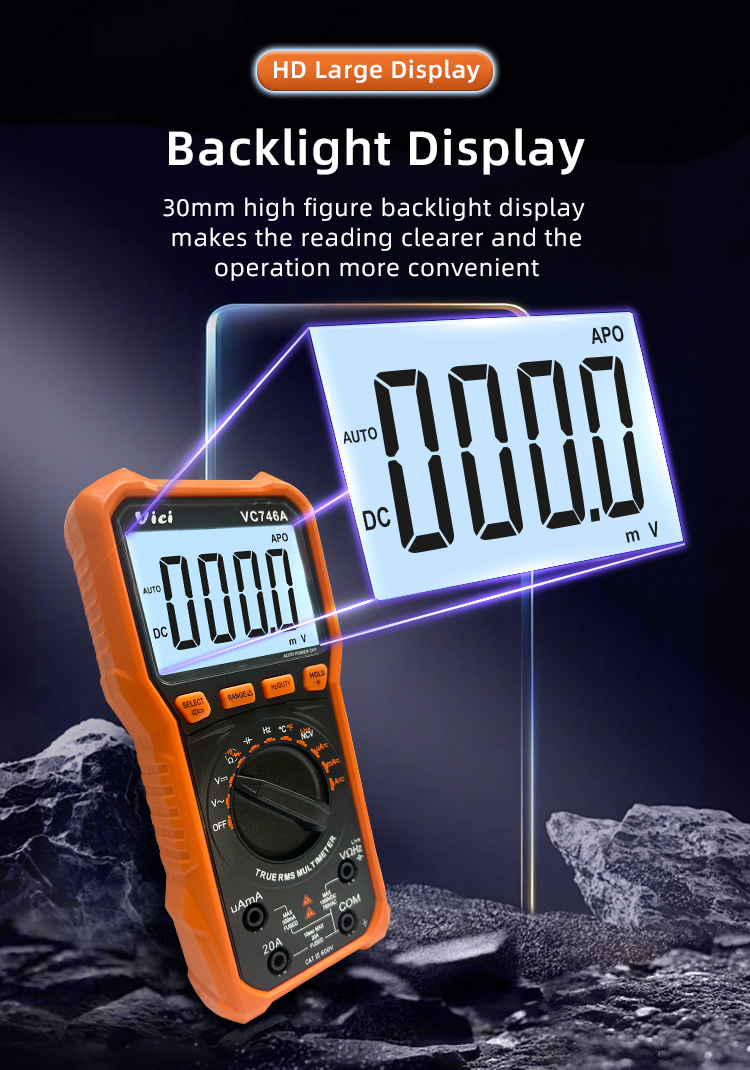

Backlight display |
|
|
Duty cycle |
1%~99% |
|
Diode test |
√ |
|
Continuity alarm |
Less than 50Ω |
|
Low battery indicator |
Approx. less than 2.4 V |
|
Auto power off |
About 15 minutes |
|
Input impedance |
10MΩ |
|
Sampling rate |
3 times/s |
|
AC frequency response |
40Hz-2kHz |
|
Operation method |
Manual or Auto range |
|
LCD size |
65.0×43.5mm |
|
Battery |
3V (1.5V AAA×2) |
|
Power consumption |
Quiescent current about 2mA |
General Info:
|
Meter color |
Orange + Grey |
|
Meter weight |
306g (including battery) |
|
Meter size |
190×92×50mm |
|
Standard accessory |
Test leads, battery, manual, TP01 temperature probe |
|
Standard packing |
30pcs |
|
G.W. per carton |
15.5kg |
|
Carton size |
43.5*29.5*42.5cm |
